PRODUCT INFORMATION

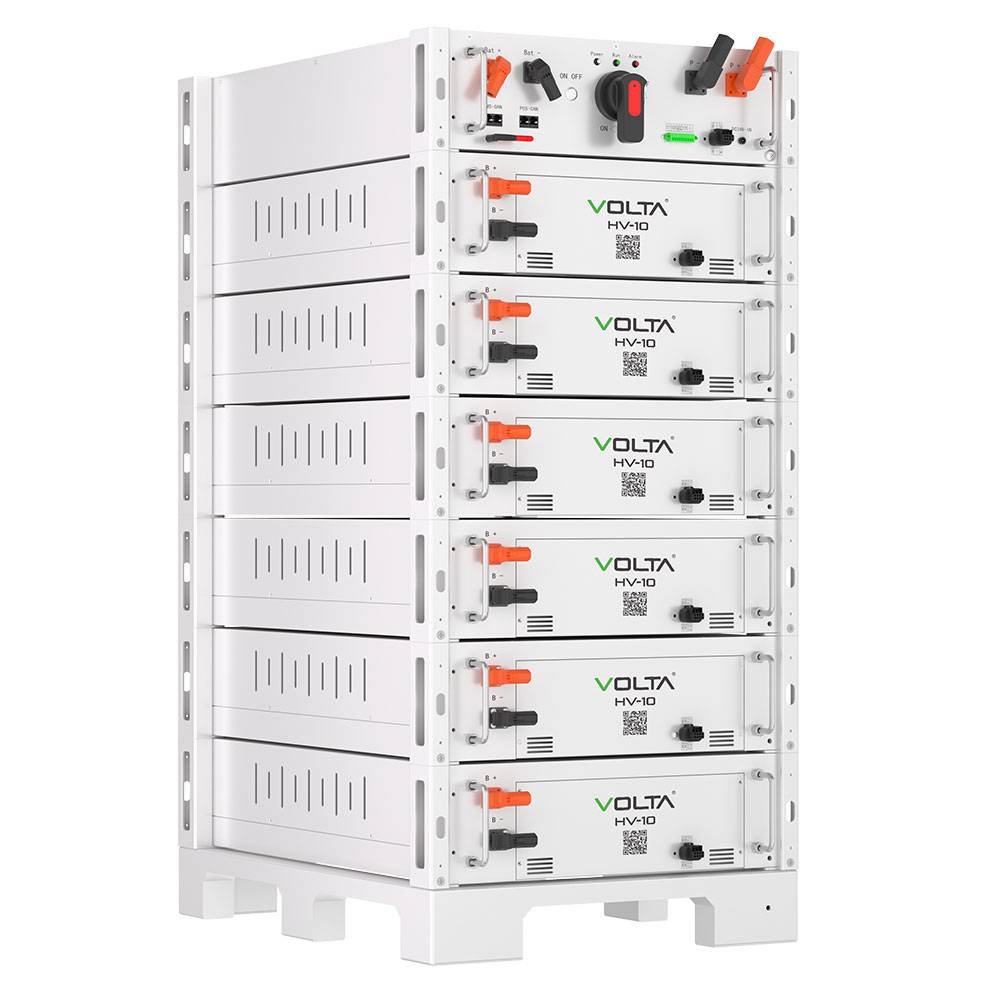

HV-10 614V100Ah features a modular design, combining lithium iron phosphate batteries, high voltage control box, intelligent BMS, natural cooling system. It boasts safety, reliability, rapid deployment, cost-efficiency, high energy efficiency, and intelligent management.
PRODUCT FEATURES
| Product Model | HV-10 Series | |
|---|---|---|
| Nominal Energy | 10.24*n kWh | |
| Battery System Voltage | 102.4*n Vdc | |
| Battery System Capacity | 100Ah | |
| Battery Module | HV-Tower-32S100 | |
| Battery Module Energy | 10.24kWh | |
| Battery Modules Qty. | 2-7 (Optional ) | |
| Battery System Charge Upper-Voltage | 115.2*n Vdc | |
| Charge/Discharge Current(Standard) | 50A | |
| Charge/Discharge Current(Normal) | 80A | |
| Charge/Discharge Current(Max.) | 100A | |
| Battery System Discharge lower-Voltage | 89.6*n Vdc | |
| Efficiency | 98% | |
| Depth Of Discharge | 90% | |
| Dimension | 755*527*1660*N(N≤7) | |
| Communication | Modbus RTU/CAN | |
| Net Weight | 100kg+75*n kg | |
| Operation Life | 10+years | |
| Operation Temperature | 10~40℃ | |
| Storage Temperature | -20~60℃ | |
| Humidity | 5%~95% | |
| Altitude | ＜2000m | |
| Certificate | Cell UL1973/IEC62619/UL9540A/TUV/CE | |
| Cycle Life | 25±2℃/0.2C/80% DOD≥7000 | |
| Parallel CAN | yes≤4 | |
| Note：The parallel operation of 2 clusters of batteries allows a maximum current charge and discharge of 1C, the parallel operation of 3 clusters of batteries allows a maximum current charge and discharge of 0.8C, and the parallel operation of 4 clusters of batteries allows a maximum current charge and discharge of 0.7C; if the number of parallel battery clusters is > 4, You must contact our company’s technical personnel for communication and confirmation before upgrading and guiding the operation and paralleling. | ||
