Volta Stage 4 - Low Voltage - Volta

|

PRODUCT SPECIFICATIONS

Volta Stage 4 – Low Voltage

FEATURES:
Two Mounting Methods. Removable floor stand and wall mount.

PRODUCT FEATURES

Flexible installation, saving time and effort
1C/1C continuous charge and discharge
Auto Dip
Superior LiFePO4 safety performance
Low voltage safety connection
Max. 16 modules parallel

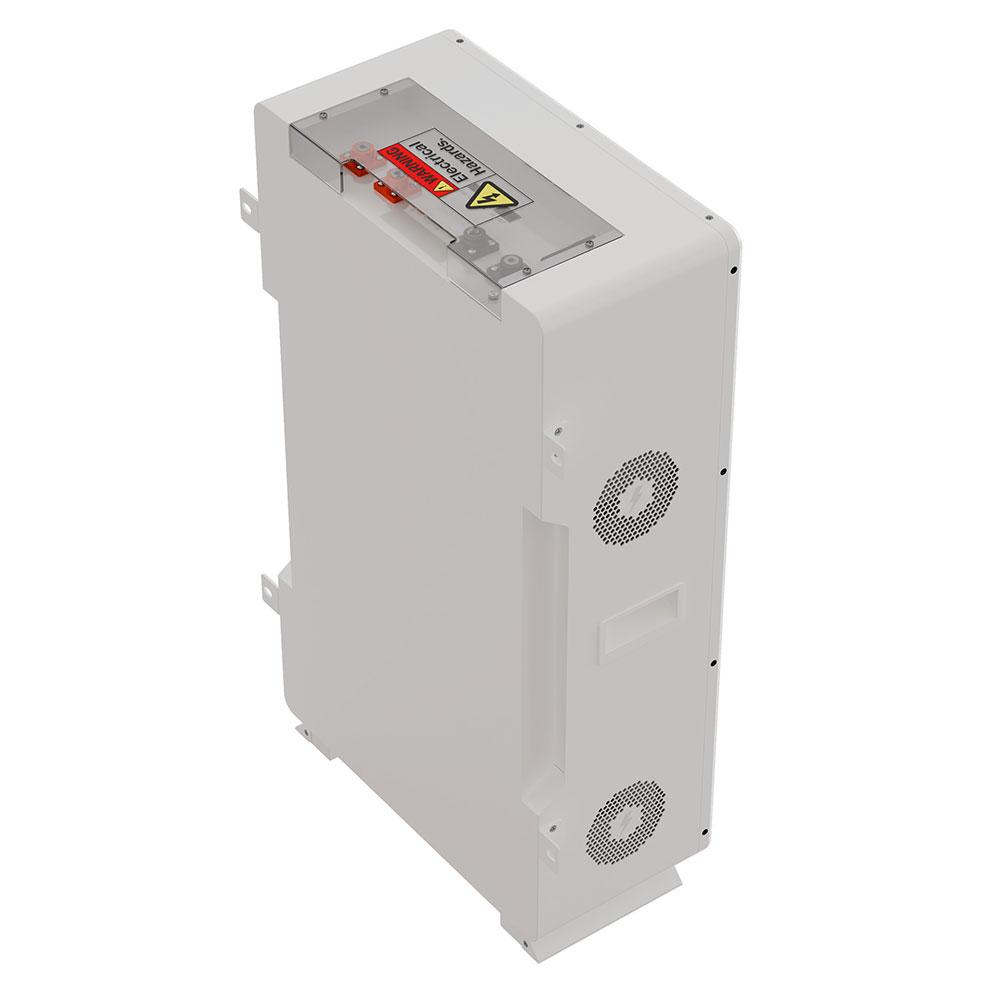

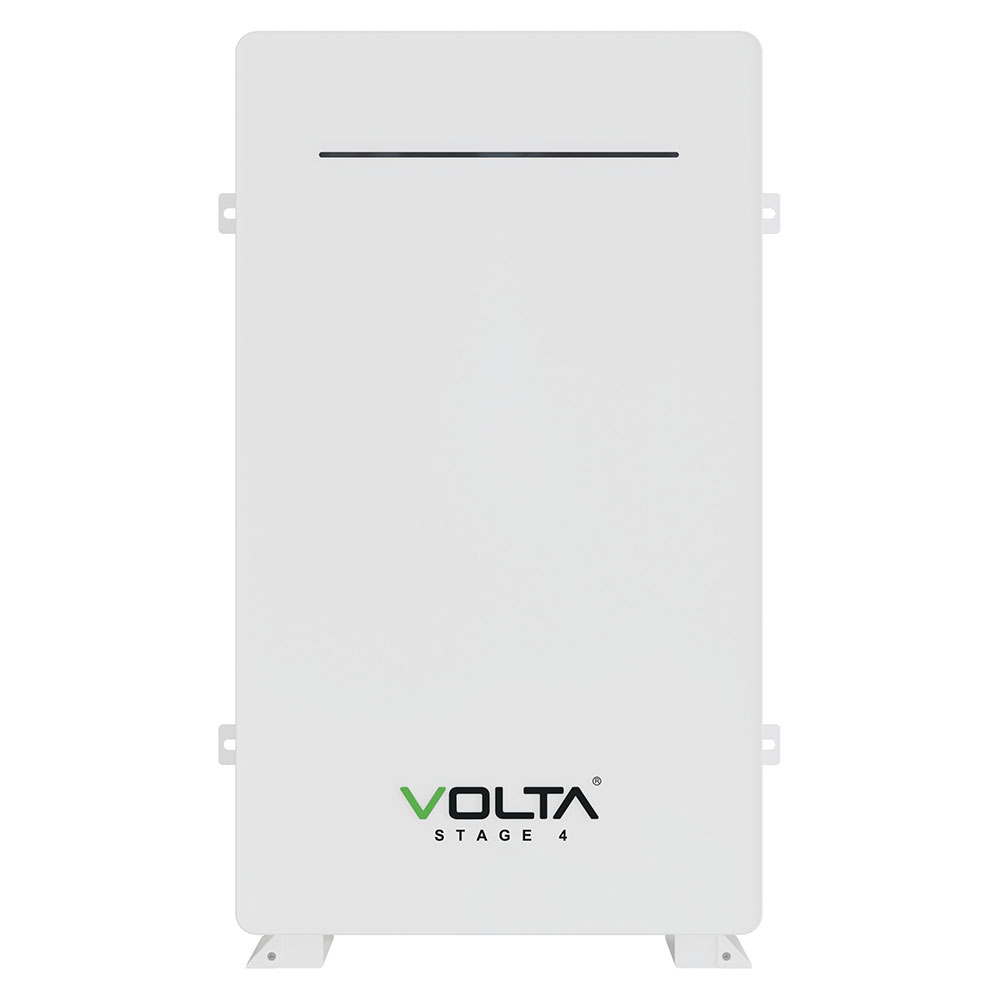

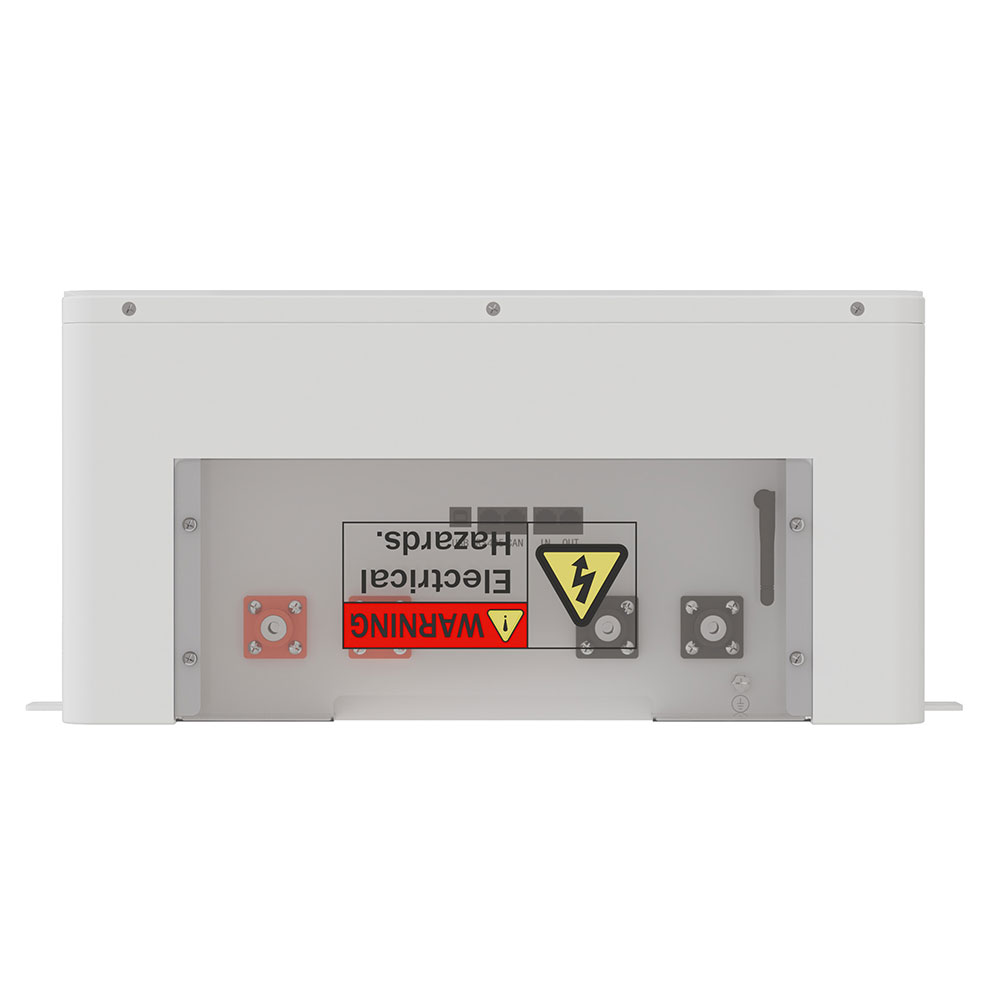

Volta Stage 4 - Low Voltage

Volta Stage 4 - Low Voltage - Image 2

Volta Stage 4 - Low Voltage - Image 3

Volta Stage 4 - Low Voltage - Image 4

Volta Stage 4 - Low Voltage - Image 5

Volta Stage 4 - Low Voltage - Image 6

VOLTA STAGE 4 – LOW VOLTAGE SPECIFICATIONS

Technical Data

Product Model	VOLTA STAGE 4
Nominal Energy	14.34KWH
Nominal Voltage	51.2V
Nominal Capacity	280Ah
Cell Type	LFP
Standard Charge Voltage	56.8V
Max Discharge Current	200A
Discharge Cut-Off Voltage	44.8V
Parallel Function	Auto-dial CAN
Communication Interface	RS485, USB, CAN
Charge Temperature Range	0~55°C
Dimensions	490840242mm
Net Weight	123Kg
Installation Method	Floor Standing
Warranty	10 Years for battery cells
Energy Throughput”	31MWh
Optional	WiFi Remote Monitoring

VOLTA STAGE 4 – LOW VOLTAGE CATALOGUE

Explore the full specifications, features, and options for Volta Stage 4 – Low Voltage in our detailed product catalogue.

RELIABLE PERFORMANCE YOU CAN TRUST.

SIMILAR PRODUCTS

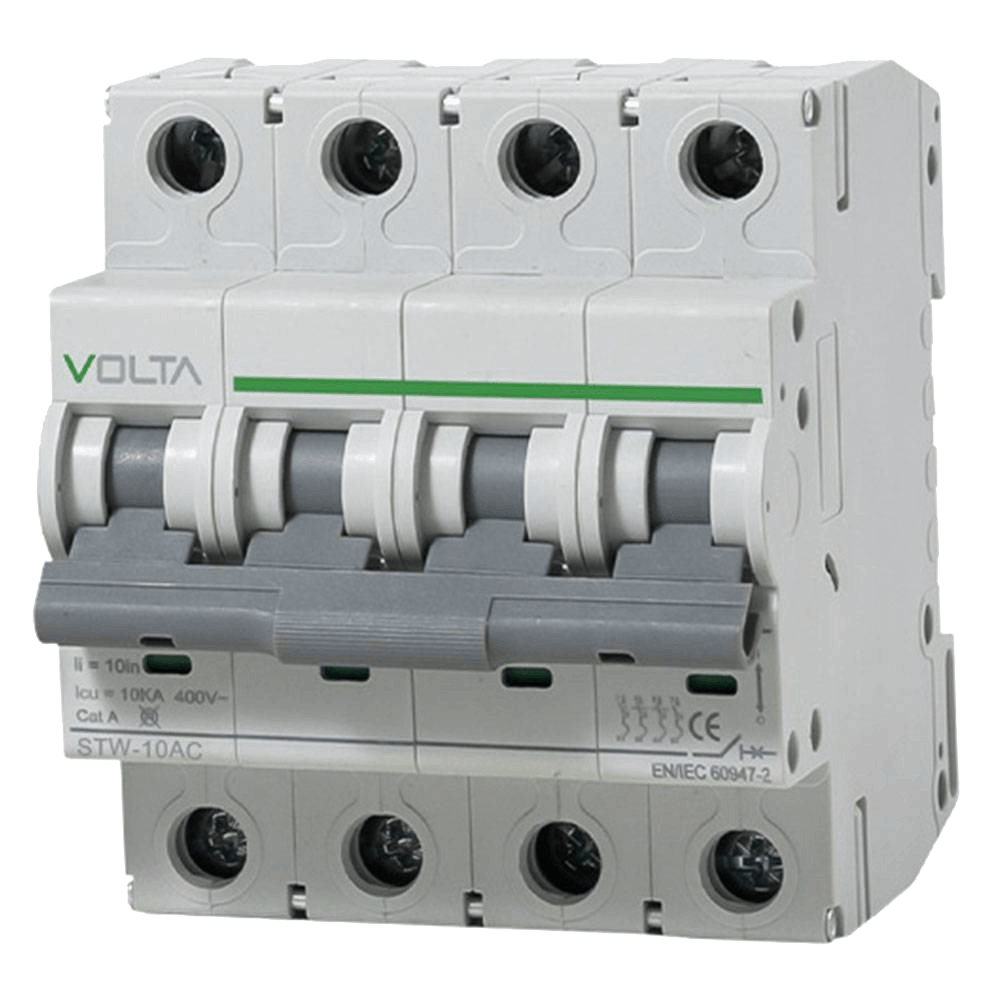

STW2-63 Series Miniature Circuit Breakers – 4 Pole

AC SIZE: 10AC | 16AC | 20AC | 25AC | 32AC | 40AC | 50AC | 63AC

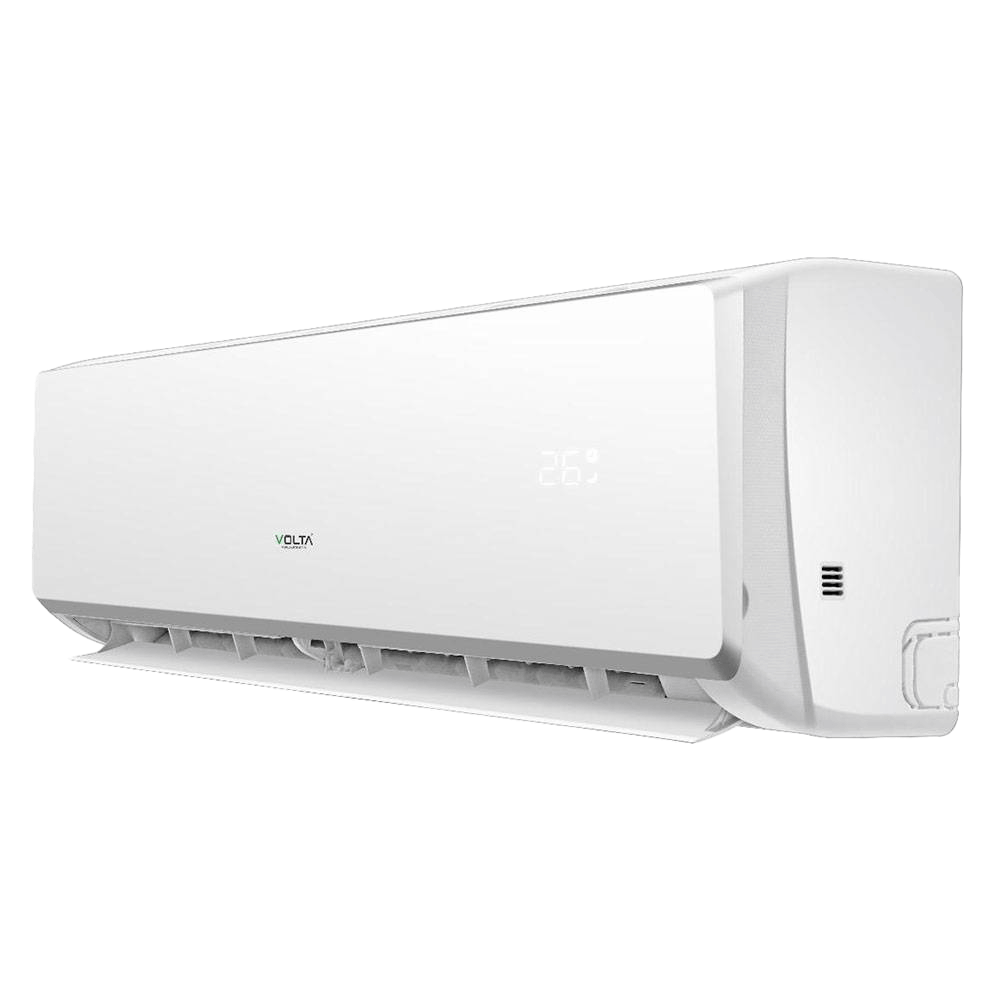

SMART INVERTER SPLIT AIR-CONDITIONER – 12000 BTU
