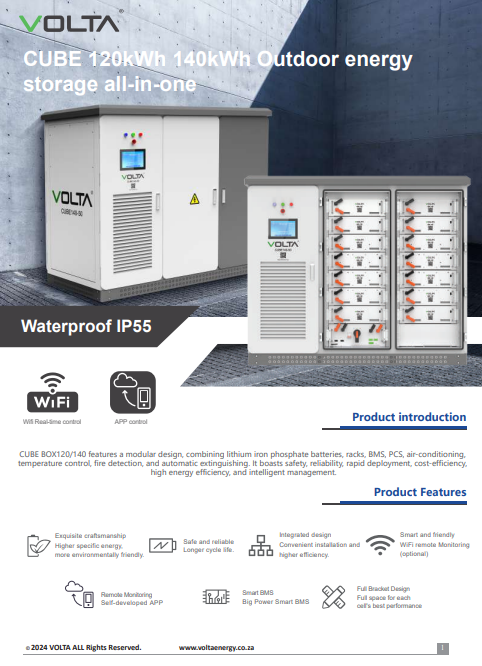

PRODUCT INFORMATION

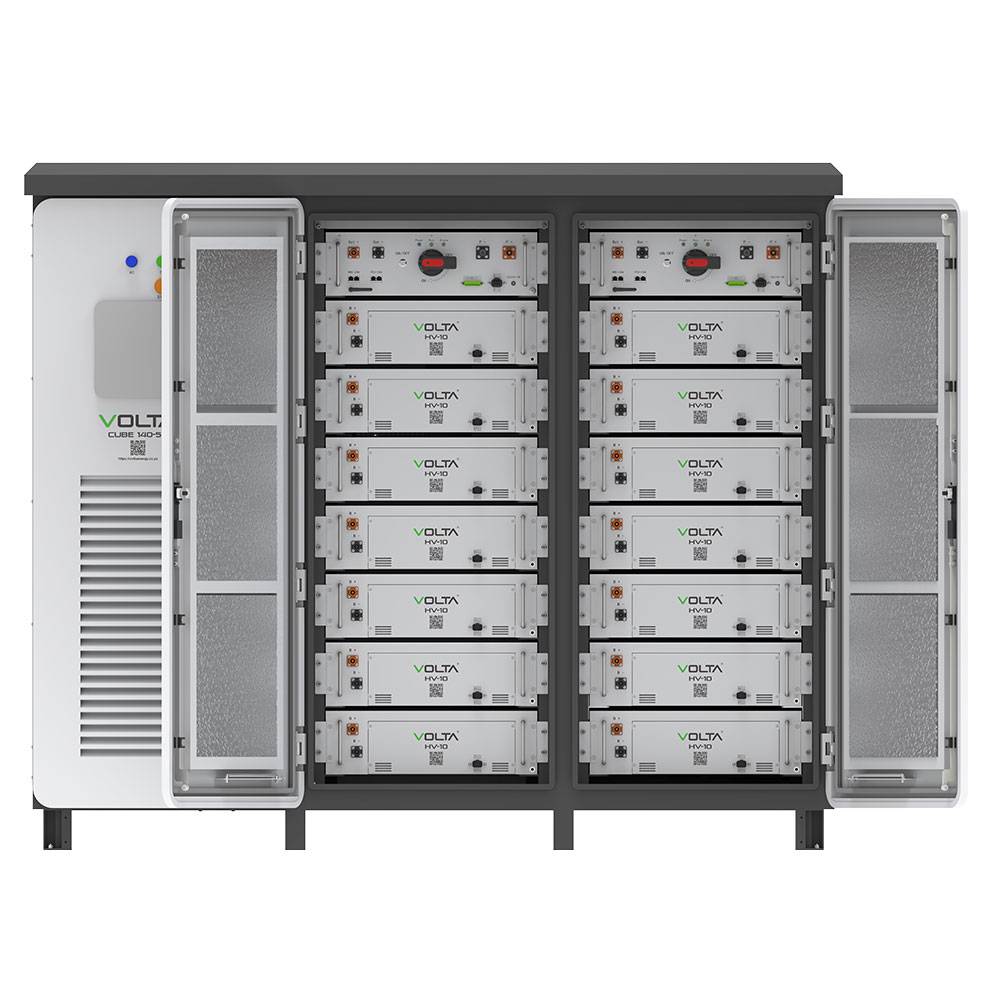

CUBE BOX120/140 features a modular design, combining lithium iron phosphate batteries, racks, BMS, PCS, air-conditioning, temperature control, fire detection, and automatic extinguishing. It boasts safety, reliability, rapid deployment, cost-efficiency, high energy efficiency, and intelligent management.
PRODUCT FEATURES
.Exquisite craftsmanship Higher specific energy, more environmentally friendly
.Safe and reliable Longer cycle life
.Integrated design Convenient installation and higher efficiency
.Smart and friendly WiFi remote Monitoring (optional)
.Remote Monitoring Self-developed APP
.Smart BMS Big Power Smart BMS
.Full Bracket Design Full space for each cell’s best performance
| Model No. | CUBE 120-50 | CUBE 140-50 |
|---|---|---|
| Nominal Energy | 122.8KWH | 143.2KWH |
| Nominal Voltage | 614V | 716V |
| Nominal Capacity | 200Ah | 200Ah |
| Cell Type | LFP | LFP |
| Standard Charge Voltage | 691V | 806V |
| Max Charge Current | 200A | 200A |
| Discharge Cut-Off Voltage | 537V | 627V |
| Max Discharge Current | 200A | 200A |
| Maximum working altitude | ≤2000m | |
| Working humidity range | 5-85%RH (no condensation) | |
| Cooling method | Air-cooled | |
| Cycle Life * | 25±2°C/0.2C/80%≥6000 | |
| Range of working temperature | -10 ~ 60℃ | |
| Fire Fighting System | Aerosol | |
| Certification | Cell:UL1642 / IEC62619 / CE / ROHS / MSDS /UN38.3 Pack: MSDS / UN38.3 |
|
| Dimensions | 2000*1082*1676.5mm | |
| Weight | ≈1.2T | ≈1.4T |
| Battery system | BMS management system, fire protection system, air-cooled unit, cabinet, PCS system | |
