APPLICATION

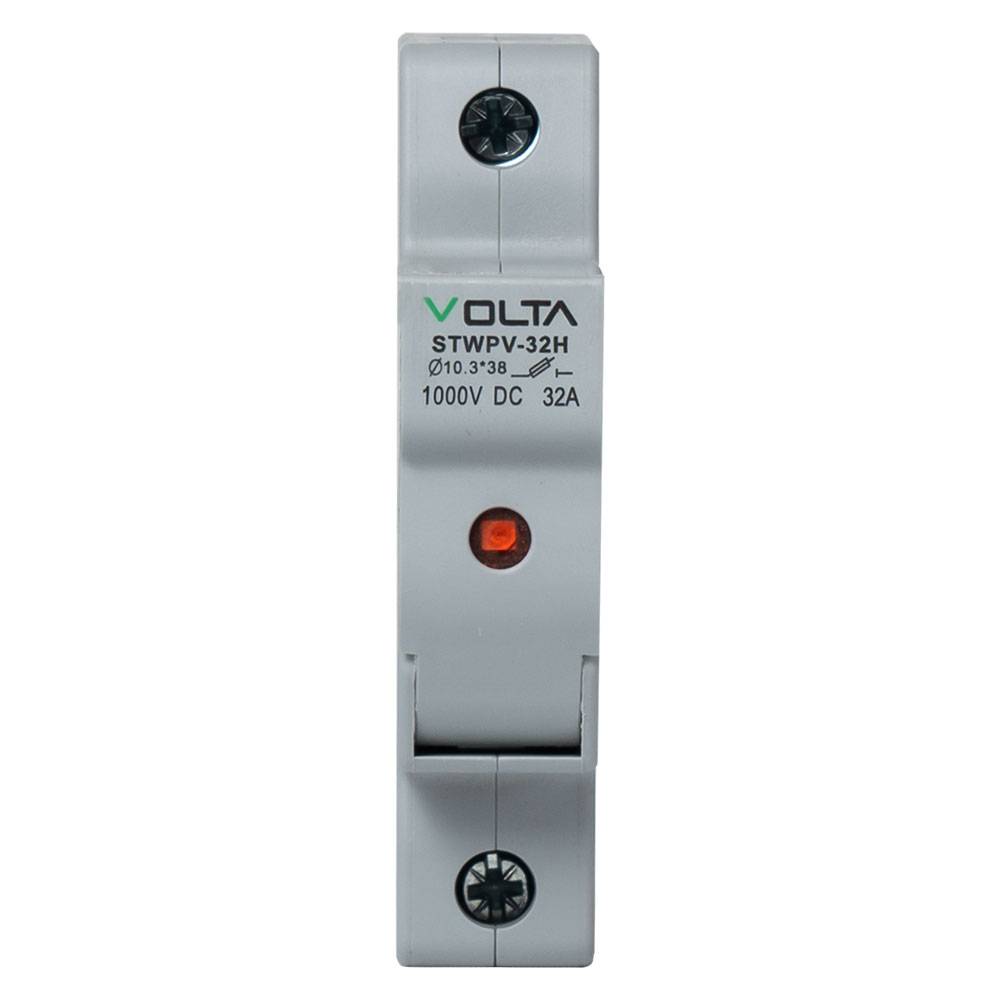

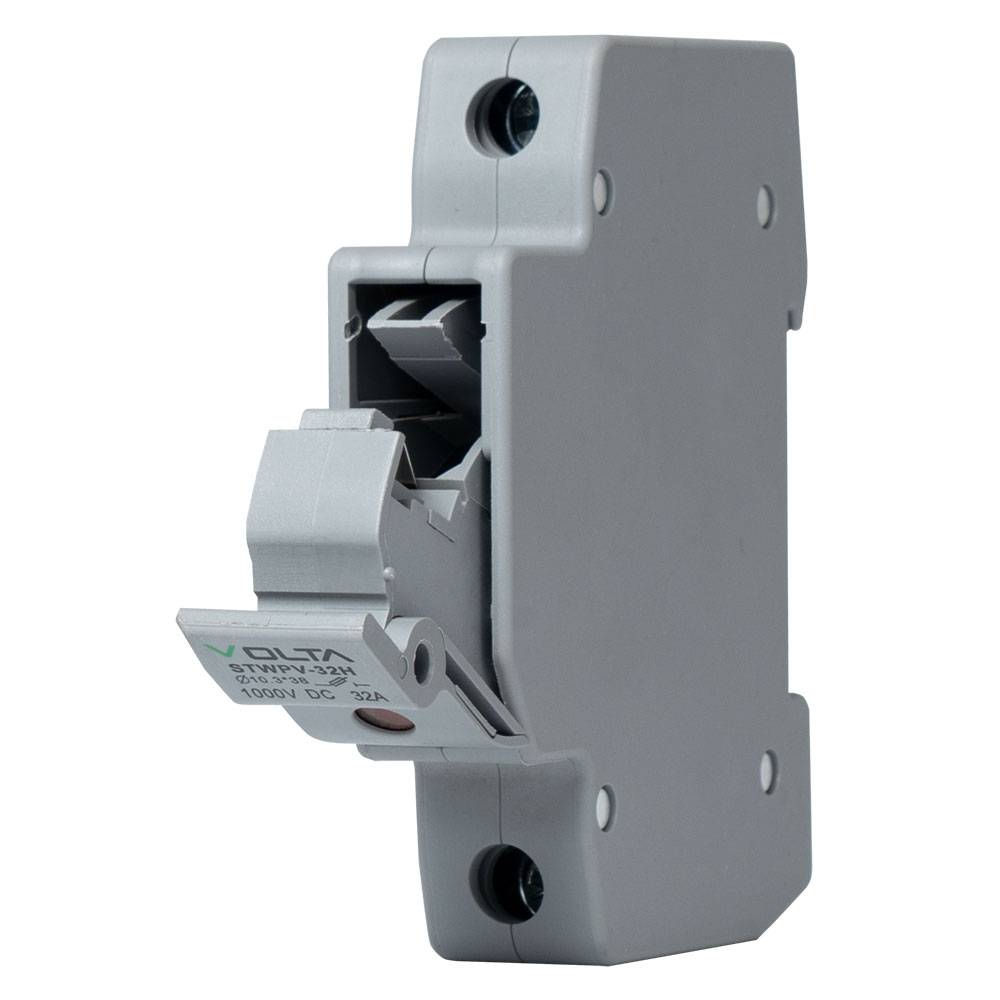

STWPV-32H Fuse Holder was designed and manufactured, complying with the standard LEC60947-3, IEC60269-6 The rated current up to32A, rated voltage up to DC1000V It applied for PV DC combiner box inverter etc, with the main function of over-current protection and effective disconnection.

FEATURES
Special DC fuse for Photovoltaic.
Max breaking capacity up to 20 KA, Effective protection.
The Innovation replacing fuse Link.
With light/without light.

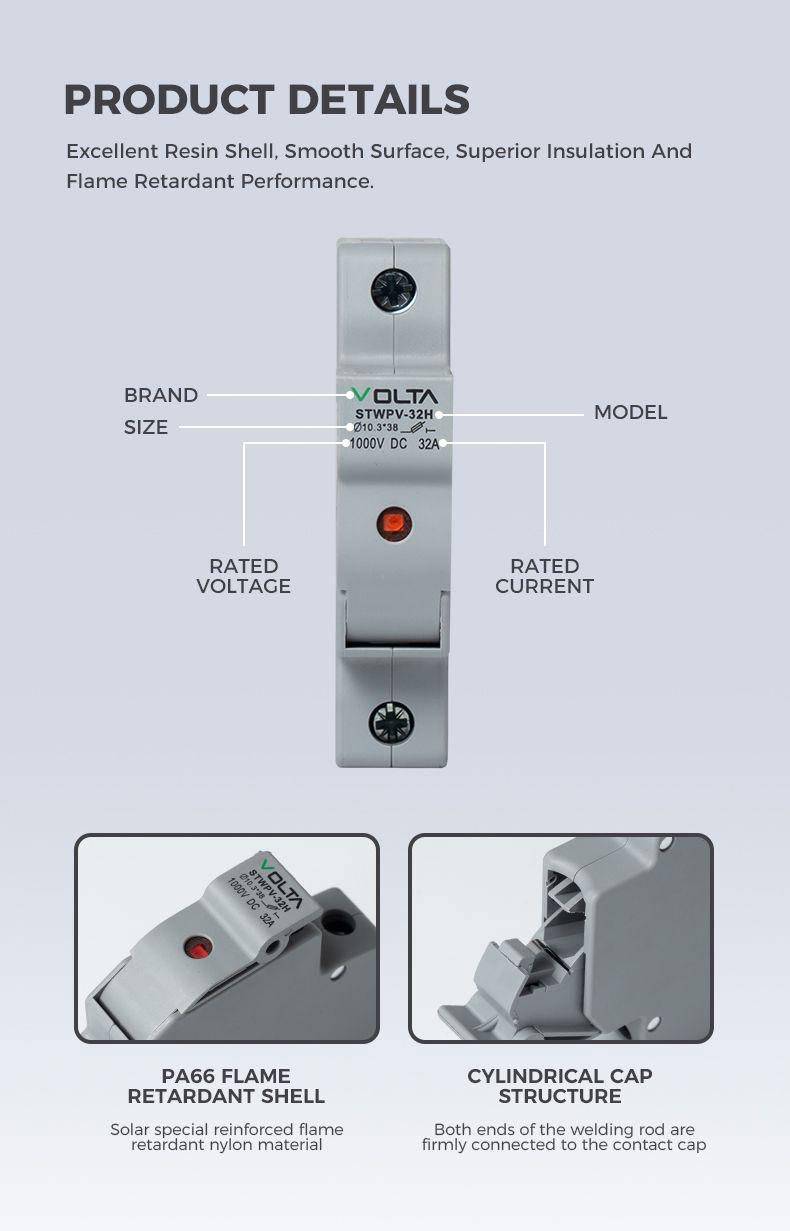

Led Indicator, reminding fuse link replacement.
Rated Voltage: DC1000V.
Rated Current: 32A.
Class of Operation: gpv.
Be suit for 10x38mm Fuse size.
Standard: EC60947-3. EC60269-6.
