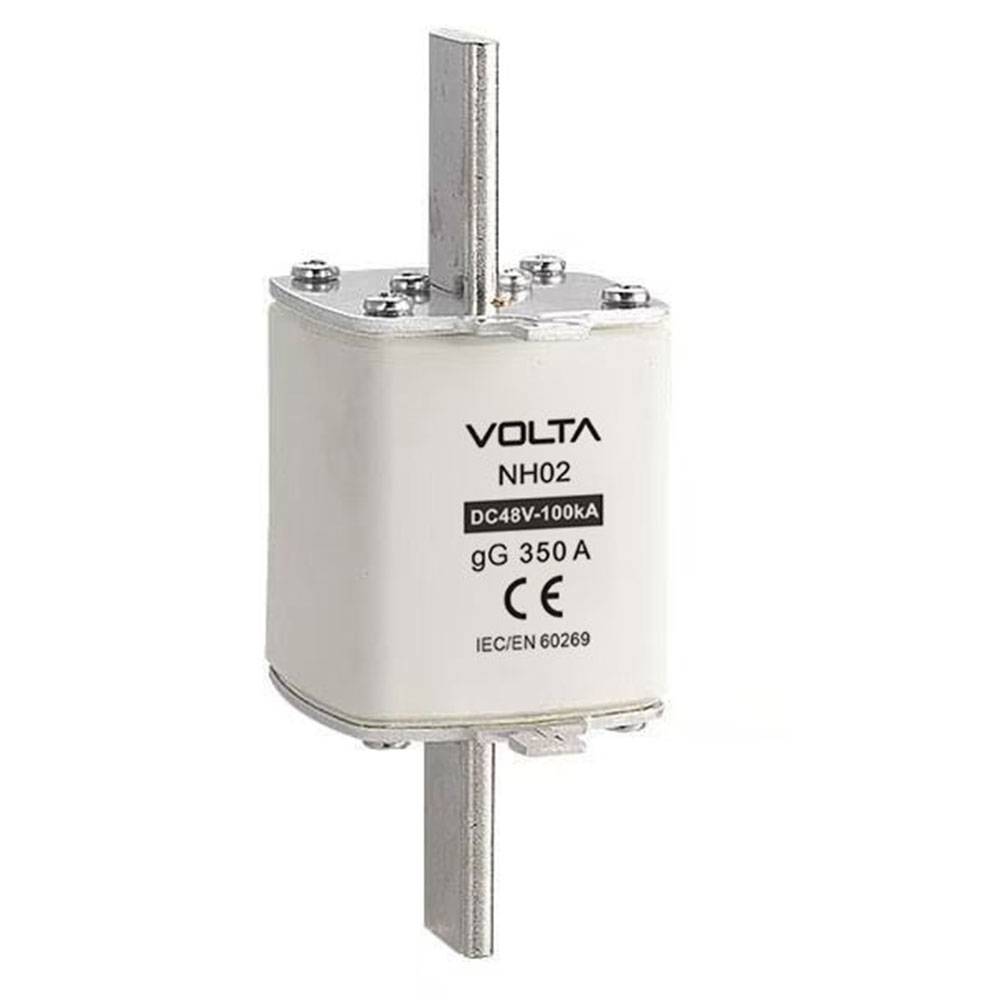

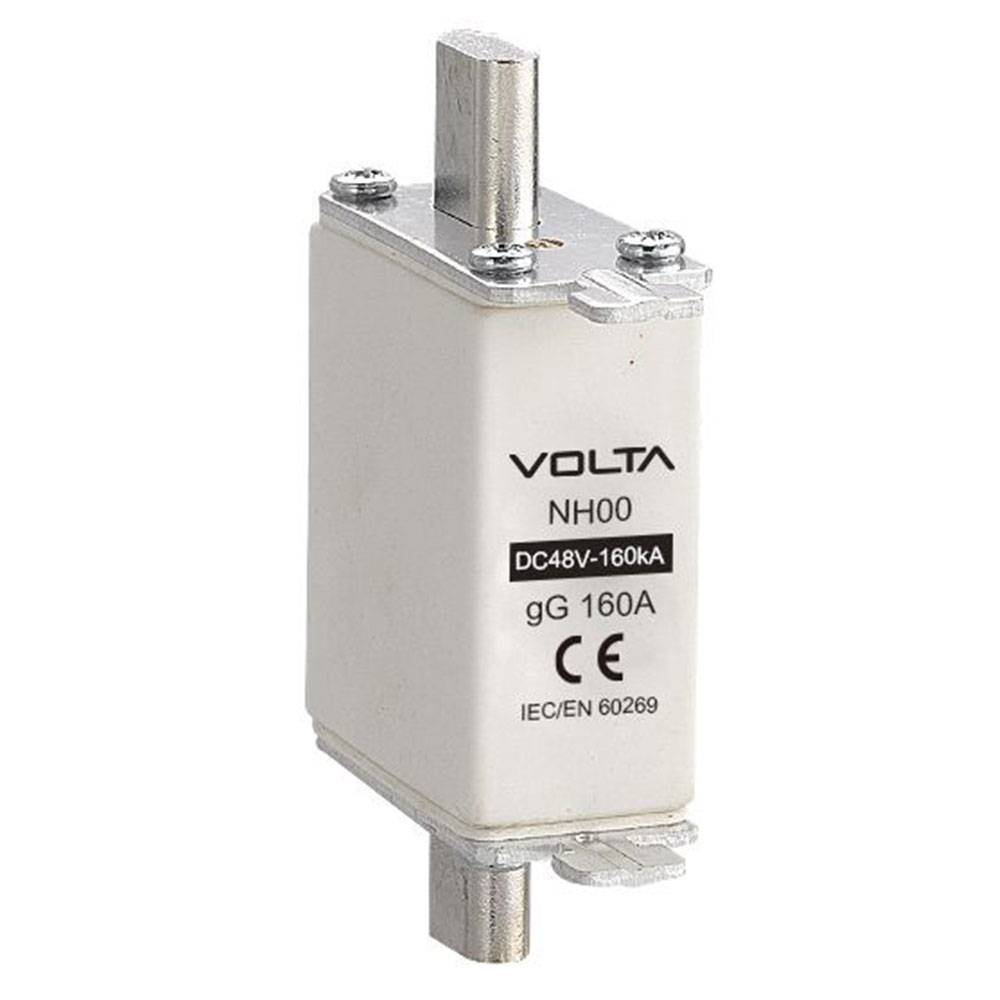

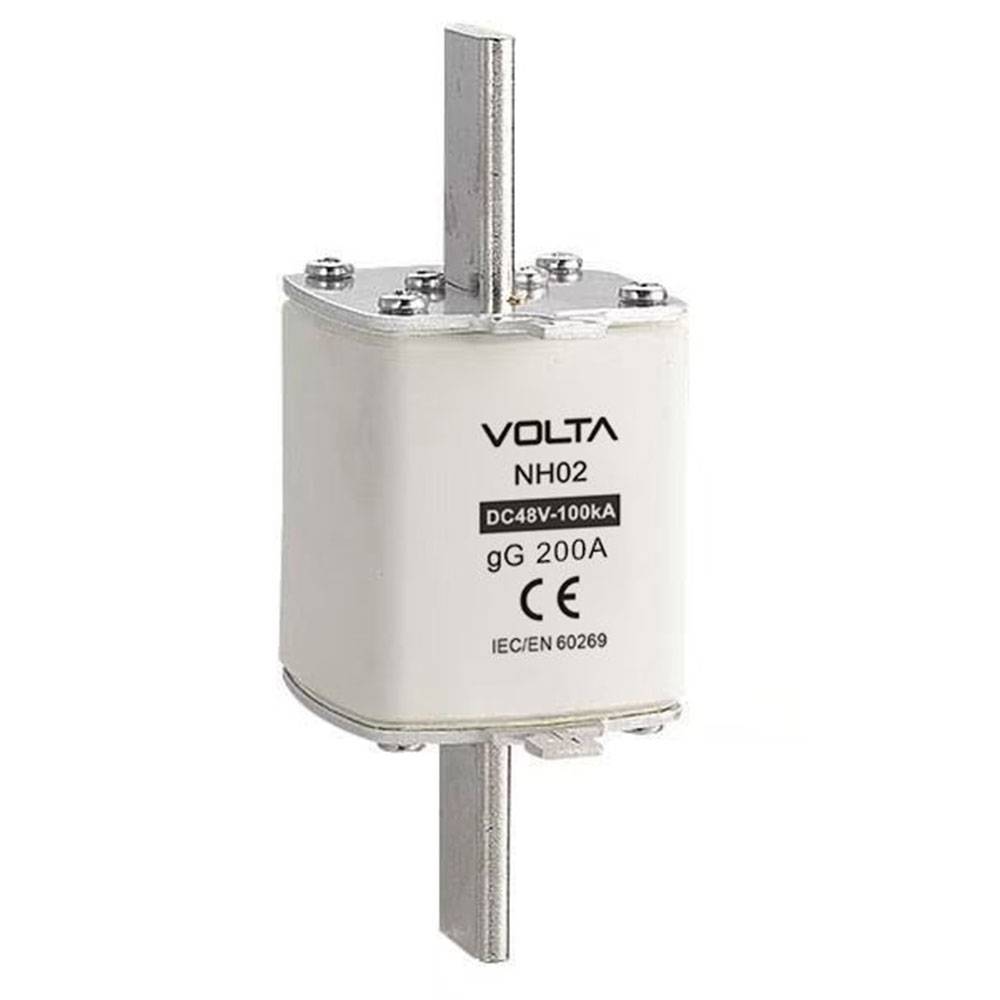

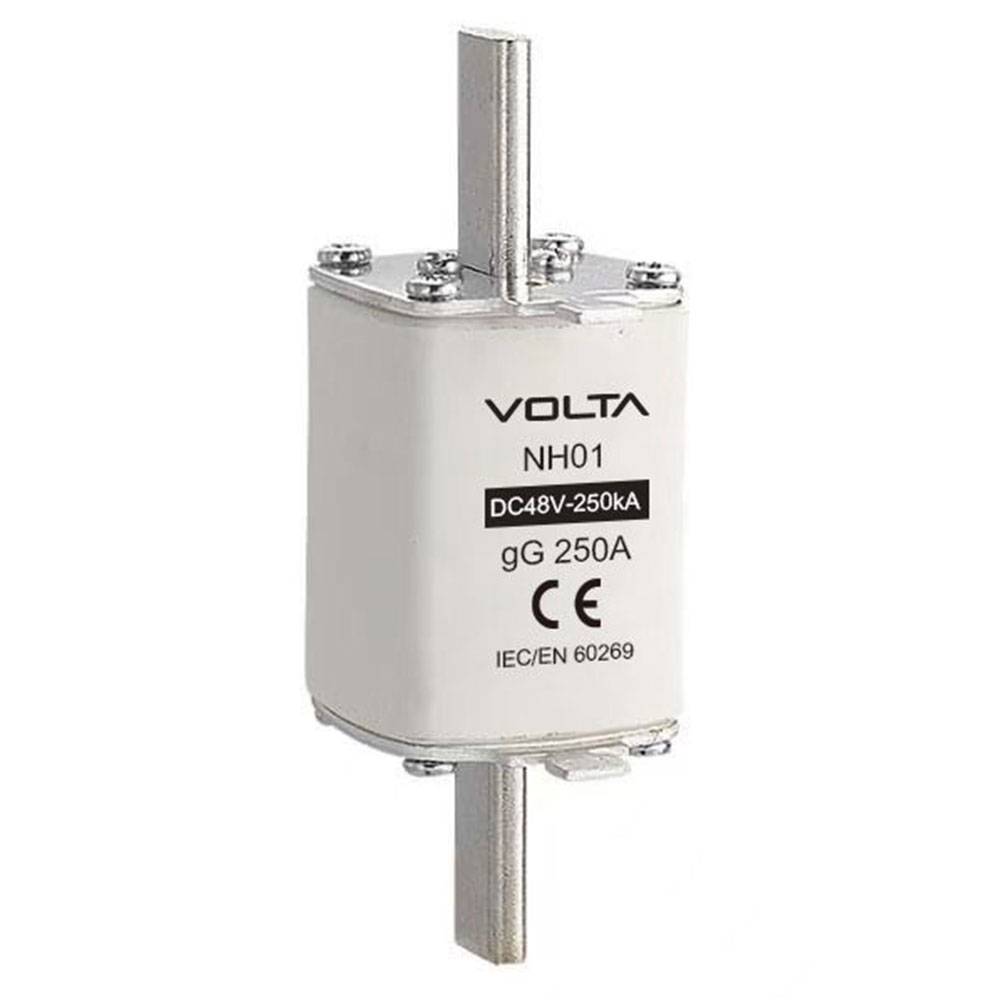

AMPS SIZE:
100A / 125A / 160A / 200A / 250A / 350A
APPLICATION
This series of fuse links is mainly used in AC 50Hz, rated voltage up to 1140V, rated current up to 1250A and for pro-tecting electric equipment from overload and short-circuit. It can reliably break the min fusion current to any current within 120KА.
It is also available for the protection of semiconductor parts and equipment’s against short-circuit(type aR)and protection of motors(type aM).
This series of fuse links conforms to GB13539 and IEC 60269 standards.
FEATURES
It adopts the material with high quality. The arc-extinguishing medium is quartz sand and fuse tube is high strength ceramic. The advanced manufacturing craft work ensures the performance of small power waste stable characteristic for the product. The outline structure and insta lation dimension joints the advanced similar products from domestic and abroad.
| Size | a1 | a2 | a3 | a4 | b | c1 | c2 | d | e1(max) | e2(max) | e3(max) | e4 | f(max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 000 | 78.5 | 54-6 | 45.4 | 49.1 | 15 | 35 | 9.5 | 1.9 | 43 | 21 | 17 | 6 | 7.5 |
| 00 | 76.5 | 54-6 | 45.7 | 49.7 | 15 | 34.7 | 10 | 1.5 | 44.5 | 28.5 | 18 | 6 | 13 |
| 0 | 125 | 68-8 | 61 | 64.7 | 15 | 34 | 9.8 | 2.7 | 44 | 28.5 | 18 | 6 | 12.5 |
| 1C | 134 | 68-8 | 61 | 64.7 | 15 | 34 | 9.8 | 2 | 44 | 28.5 | 14 | 6 | 12.5 |
| 1 | 134 | 75-10 | 62 | 66 | 20 | 40 | 10.2 | 2 | 49 | 48 | 18.5 | 6 | 11.8 |
| 2C | 150 | 75-10 | 62 | 66 | 20 | 47 | 10 | 2.5 | 47 | 47 | 18 | 6 | 11.5 |
| 2 | 149 | 75-10 | 62.5 | 67 | 25 | 46.3 | 10 | 2.3 | 58.5 | 58.5 | 18 | 6 | 14 |
| 3C | 149 | 75-10 | 61 | 66 | 25 | 56 | 10 | 2.8 | 59.5 | 59.5 | 24 | 6 | 16.5 |
| 3 | 150 | 75-10 | 62 | 68 | 32 | 60.5 | 10 | 3 | 68 | 68 | 18 | 6 | 15.5 |
| 4 | 202 | Max90 | 66 | 71 | 50 | 81.5 | 11 | 3 | 95 | 87 | 23.5 | 8 | 21 |
